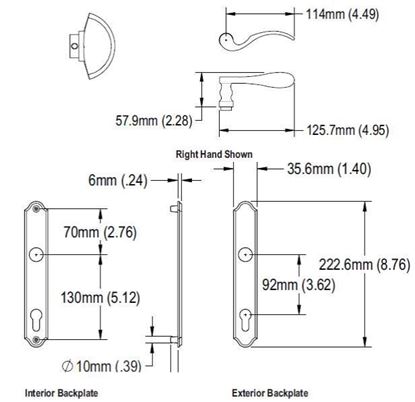

Complete handle set for Caradco swing patio doors. PLEASE check dimensions in drawing below. Version with 10”tall back plate can replace 8 1/8" obsolete version if all other dimensions align. One handle set is for one door. A double [French] door uses quantity two handle sets.

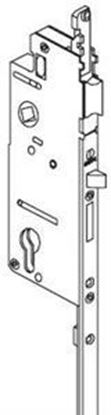

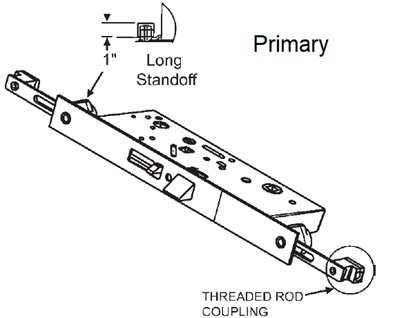

Primary gear is used on single swing doors, and the primary door of French (two operating doors). Secondary gear is used on the secondary door of French doors.

Primary gear is used on single swing doors, and the primary door of French (two operating doors). Secondary gear is used on the secondary door of French doors.

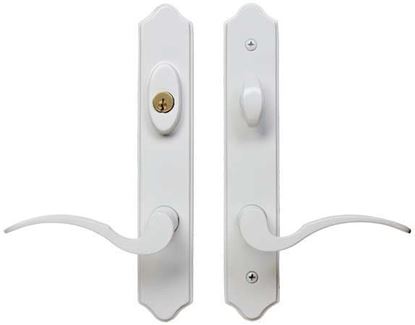

Complete handle set for Caradco swing patio doors. Handles are reversible for left or right hinge doors and fit both single and multi-point locks. Drawing shows handle with keyed lock. Doors with one handle have keyed lock. Doors with two handles have one handle with keyed lock and one handle with no keyed lock. A double [French] door uses quantity two handle sets. Lock turn knob changed in style only. Internal lock gear sold separately.
